【Profile/简介】

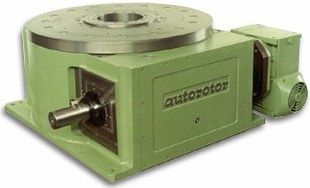

Autorotor Rotary Indexing Table Series Five is a mechanical square axis unit to transform the uniform rotation of a shaft into an intermittent rotation of an output disk.
奥图鲁特5系列旋转分度台
The number of standard in是机械直角单元，可以将输入的匀速旋转运动转化为间歇式的转动输出。
Indexes range from 2 up to 32. Also available from 32 up to 540 indexes upon request.
分度范围从2~32都可以实现。根据客户需要32~540个分度也可以定做。
Indexing tables are generally mounted on分度器通常安装在以下设备上面:

- Assembling machines组装机械
- Packing equipments包装机械
- Manutacturing equipments加工设备
- Automated welding machines自动焊接设备
- Movement devices运动部件
- Machining isles加工中心
- Filling machines填料装置
- Printing machines印刷机械
- etc等等.



【Characteristics/特性】

1. High tensile steel cam with hardened and round profiles淬火硬化圆形外缘高强度钢凸轮
2. Cam followers for high load重载用凸轮从动滚轮
3. High tensile steel indexing disc高强度钢分度盘
4. Hollow inlet power shaft on enquiry. It can easily fit different types of reducers按需要可以选配中空输入轴。轻松适配不同型号的减速机
5. Hollow output indexing shaft中空输出轴
6. Opposite conical roller bearing for input-output shaft输入输出轴采用倒锥形滚珠轴承
7. Prearrangement for reducer direct installation预留减速机安装位
8. Sealed prismatic case. Long life grease lubrification密封棱柱形箱体&油脂润滑，确保长使用寿命
9. Threaded mounting holes螺纹安装孔
10. Machined planes for flat contact机加工法兰确保平面接触
