Oscillating indexer  right-angle  for high duty cycles OTV series

Characteristics

Motion:

oscillating

Type:

right-angle

Applications:

for high duty cycles

Description

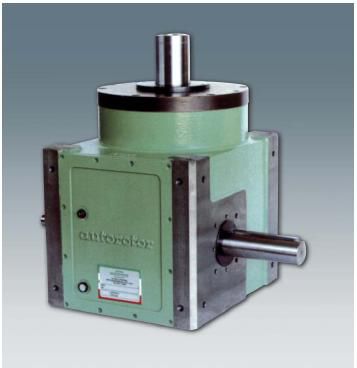

The OTV series 5 is a mechanical square axis device. It is a type of autorotor with a high speed oscillating drive.

This set is built up with an automatic cam, which transforms the inlet shaft uniform rotation into an intermittent rotation or oscillation at the outlet.

The OTV series is high speed, with full control of the out-put shaft rotation. It has a standard division of 2 to 36. The series has a suitable motion law for specific customer needs. It can also rotate equally well in both clockwise or counterclockwise motion. It has low maintenance, and is low power installed. This series has a high repeatability rate of ± 0.01 mm, and is vibration free.
